7¼” Bolt Together Tipper Kit

Description

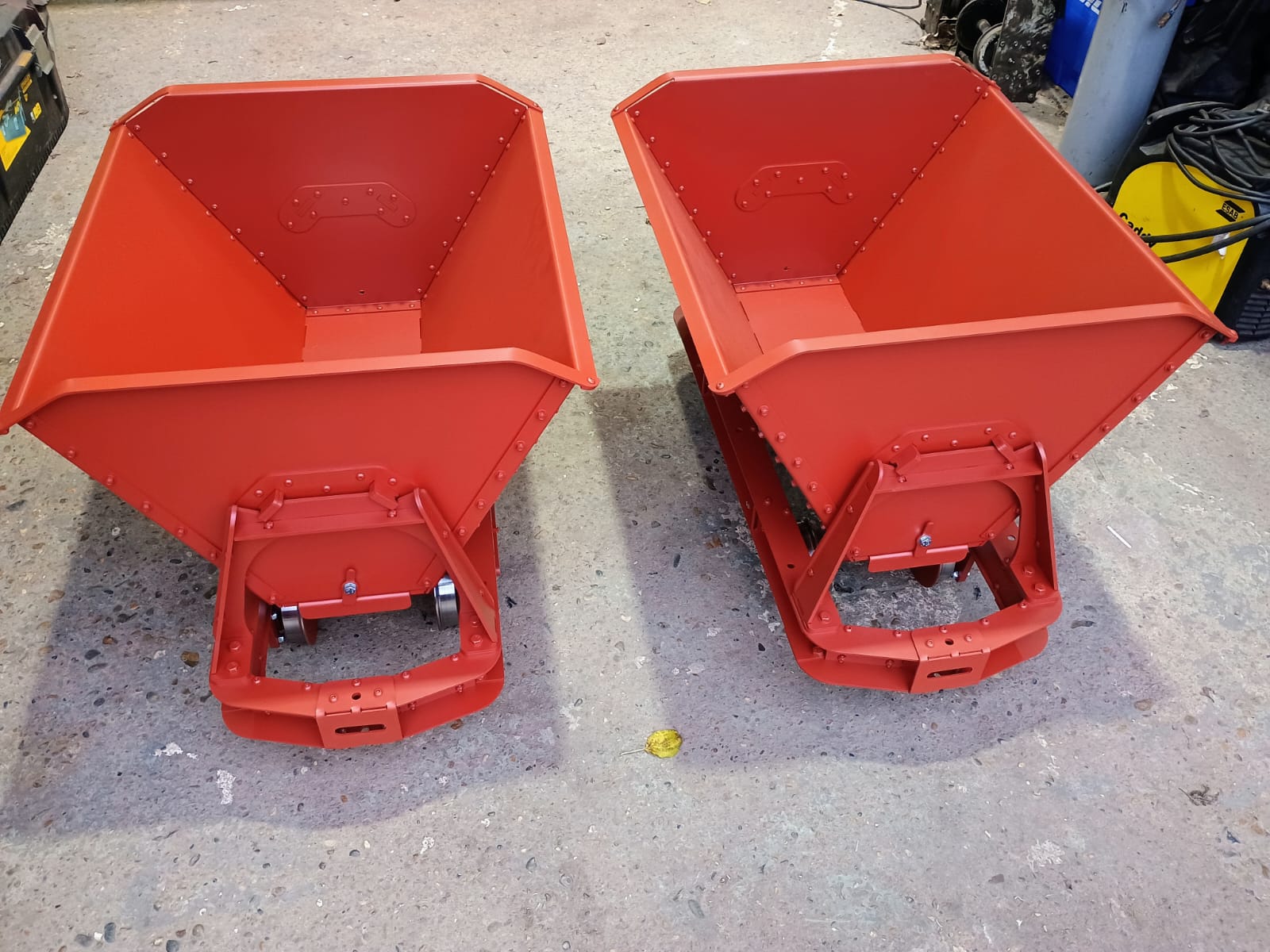

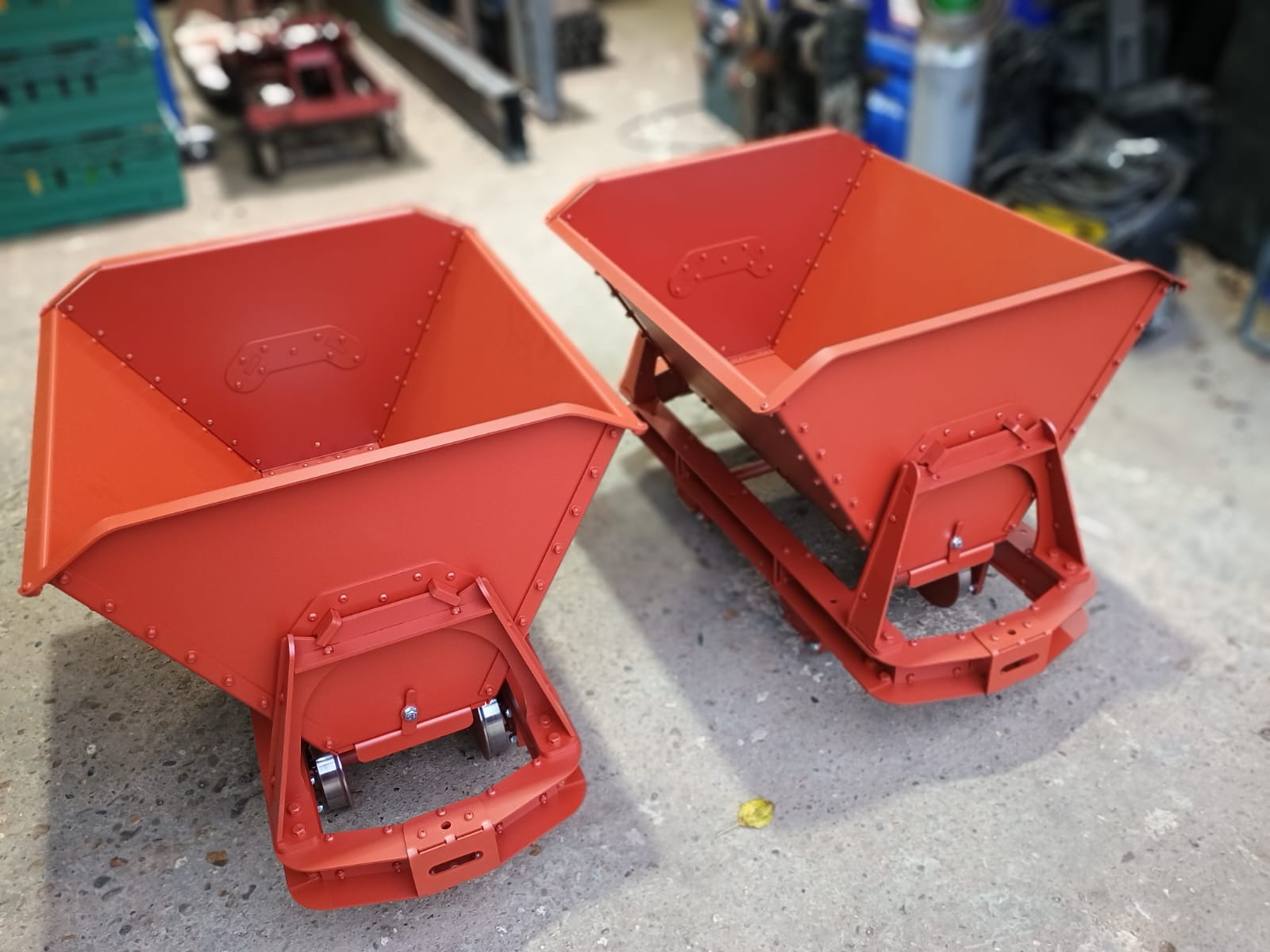

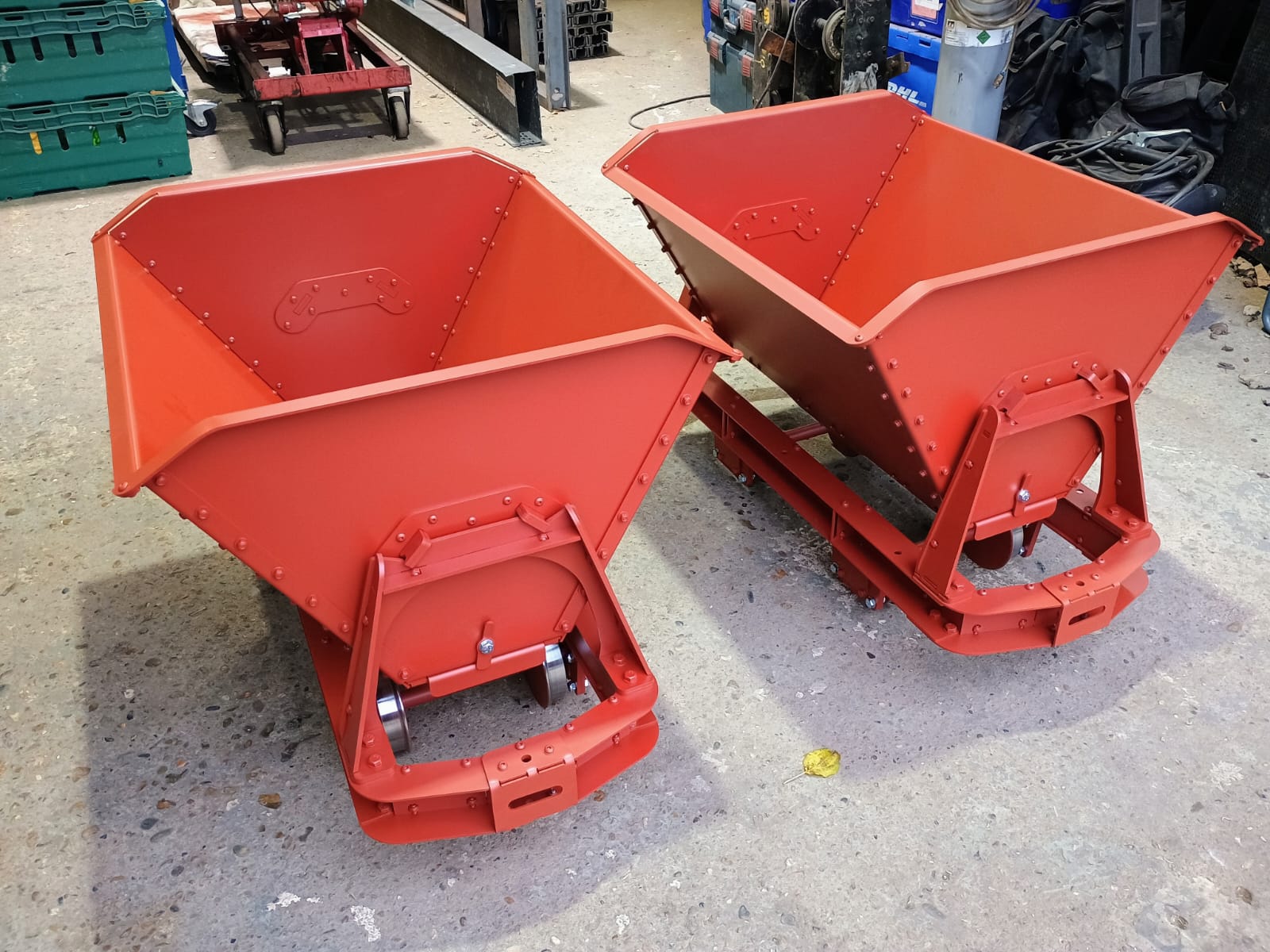

7¼” Bolt Together Tipper Kit. Designed by Colin Edmondson.

The tipper is a great functional piece of kit for any railway.  Both the frame and body is a bolt together design. The body will tip in either direction and sit stable when finished with.

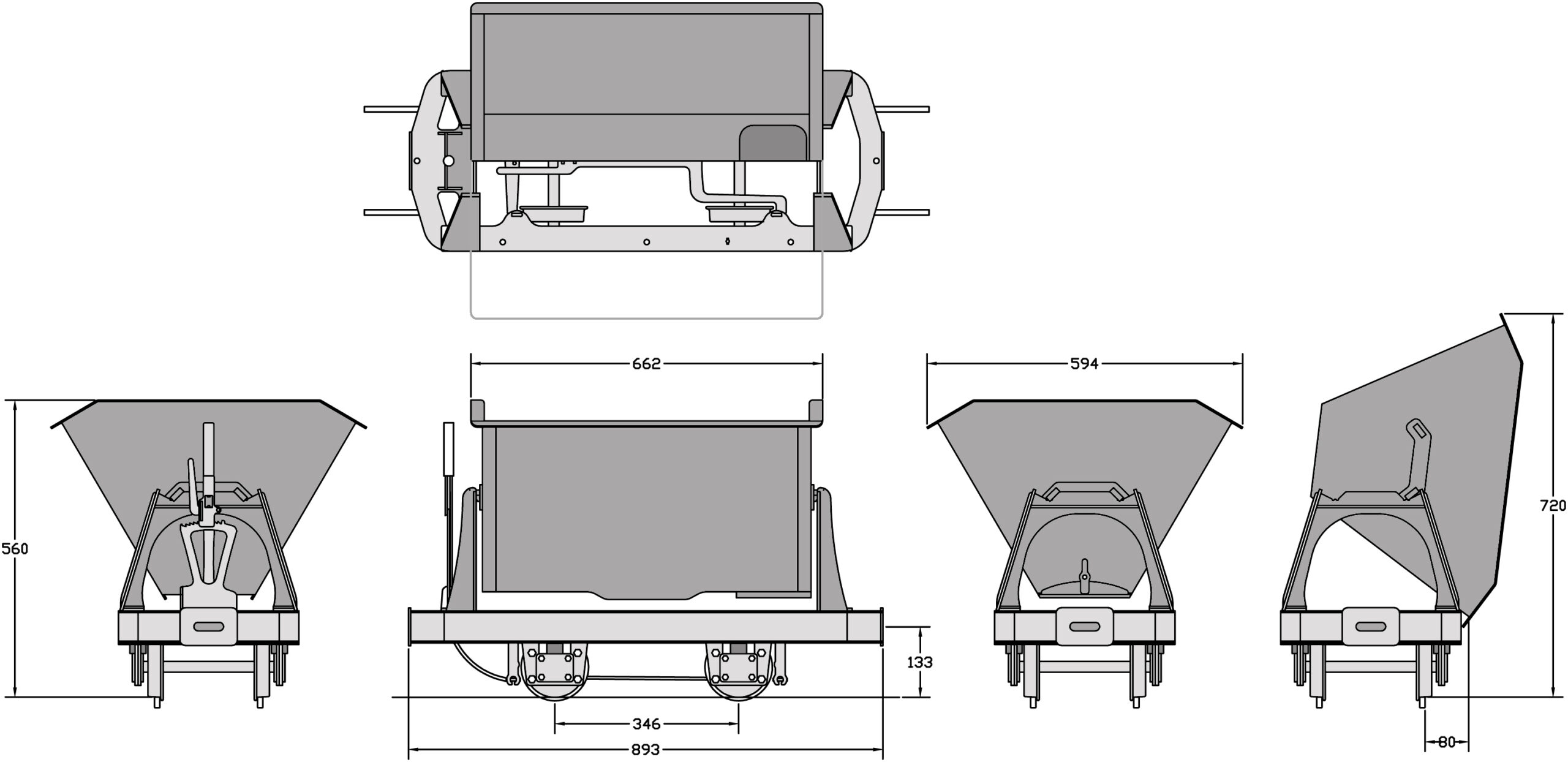

Measurements:

Body folded 3mm steel | Body supports 5mm steel. | Length 893mm | Width 594mm | Bucket capacity 75 litres

Features:

A bottom delivery door is fitted at one end, covered by a sliding plate with external handle and latch for ballasting between the rails |  The support frames and body can be unbolted | Simple parking brake.

Supplied: 7¼” bolt together tipper kit of laser cut parts | Wheelsets | Assembly instructions | Shopping list

Assembly instructions and shopping list can also be found here

Estimated lead time: 4-6 weeks.

For a personal touch of assistance during your build or breaking in your new stock, join this Facebook group. Filled with current and experienced builders of Colin Edmondson products.
