Description

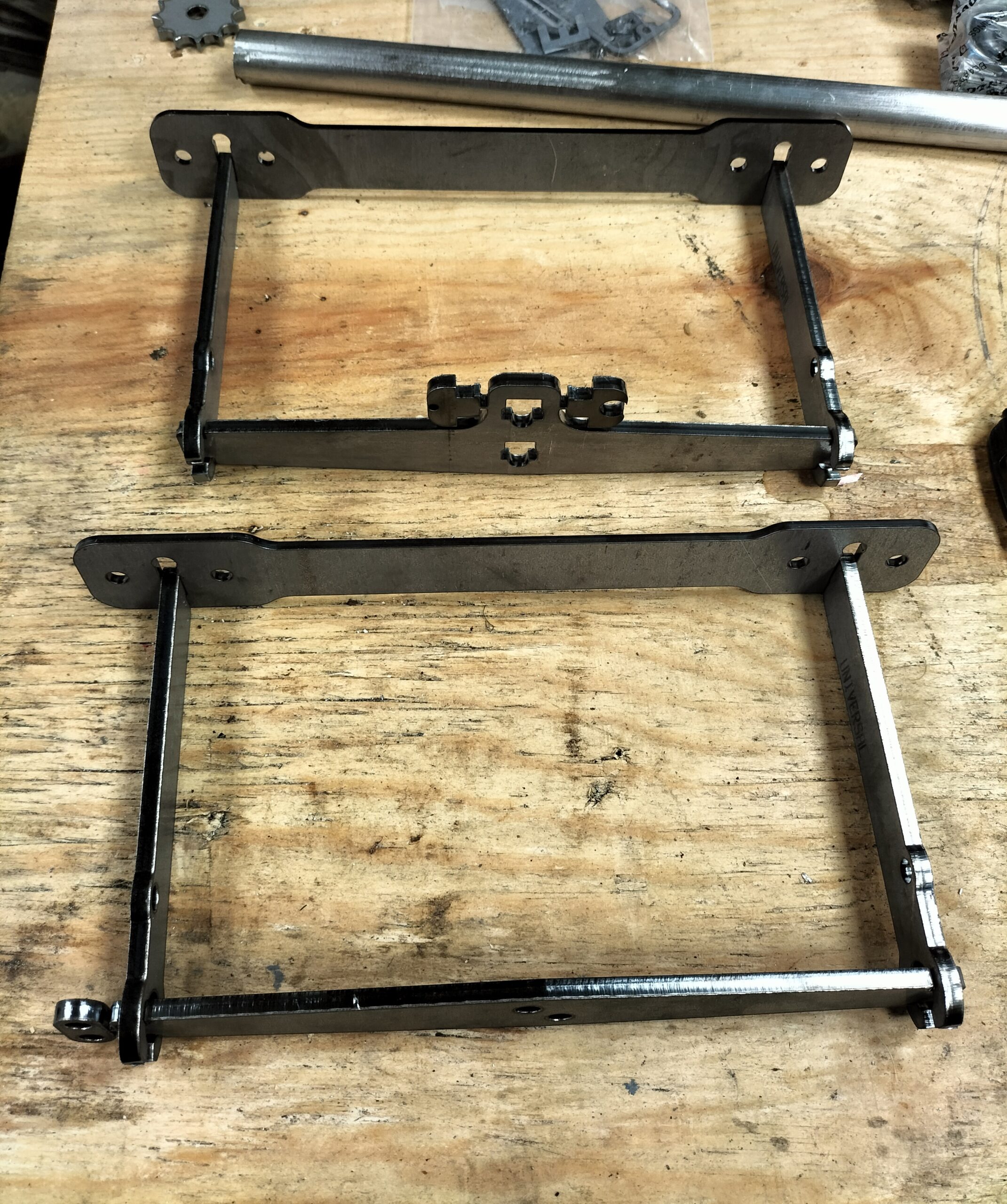

Brake rigging. Designed by Colin Edmondson. This bolt together kit takes PNP railways glass filled nylon narrow gauge brake shoes (not supplied). It is designed to be bolted under a loco or wagon floor, some clearance holes will need to be made in the floor or spacing blocks used. The rigging is cable operated; we offer car style and vertical hand brake levers to suit. The design is well proven as it is the same as we use in the Scamp locomotive.

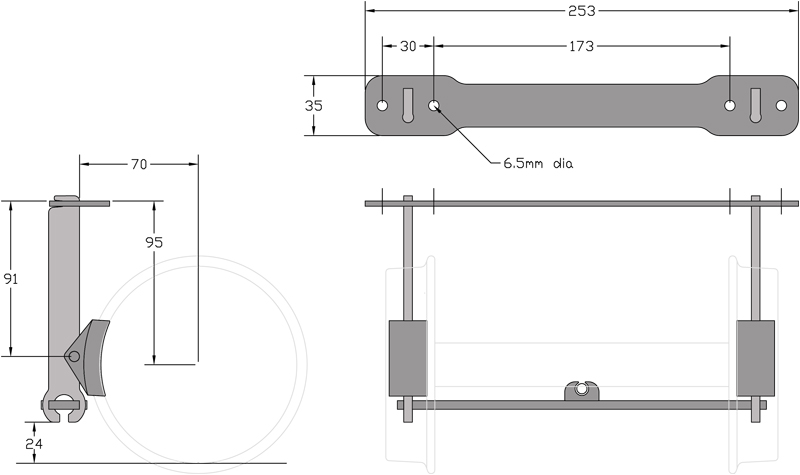

The centre of the brake block is 95mm down from the underside of the footplate.
Supplied: Laser cut steel parts in kit form, fixings and instructions.
Estimated lead time: In stock items 2-3 working days | Back ordered items 8-10 working days
Assembly instructions and shopping list can also be found here.
