Scamp 7¼”

Description

Scamp. Designed by Colin Edmondson.

The Scamp is a small 7¼” gauge sit on locomotive, ideal for all miniature railway use.

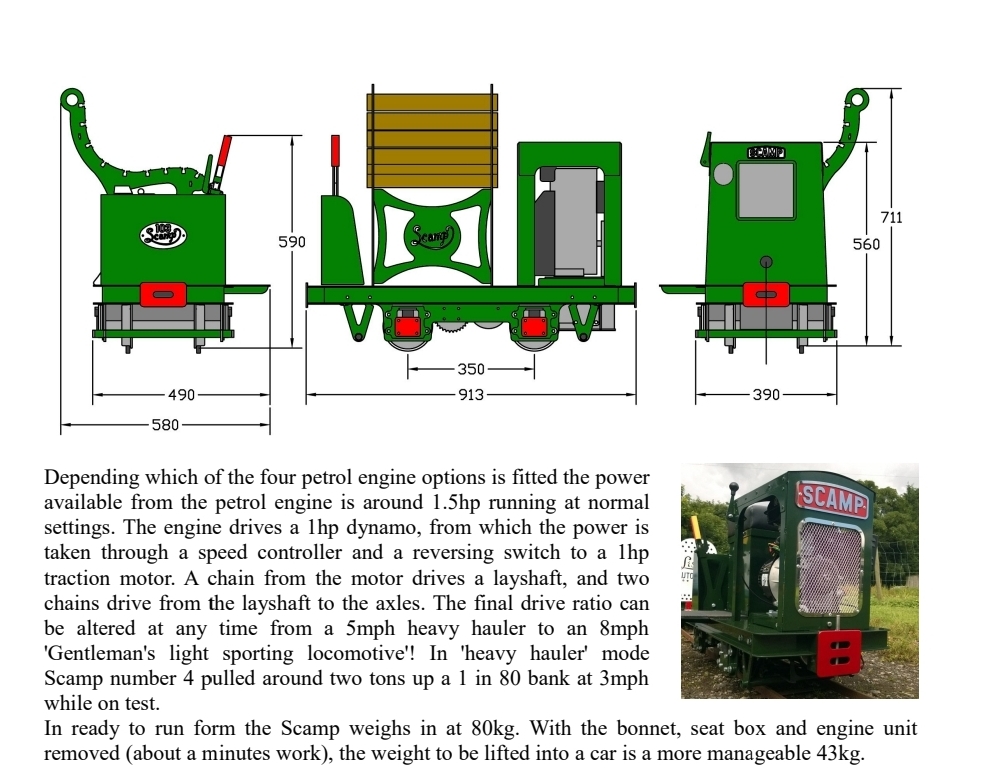

Measurements:

Length: 913mm | Width: 490mm | Height with slatted seat: 713mm | Height without slatted seat: 590mm | Weight: 80kg approx | Minimum radius: 2m | Load: 2 tons on 1 in 100

Specifications:

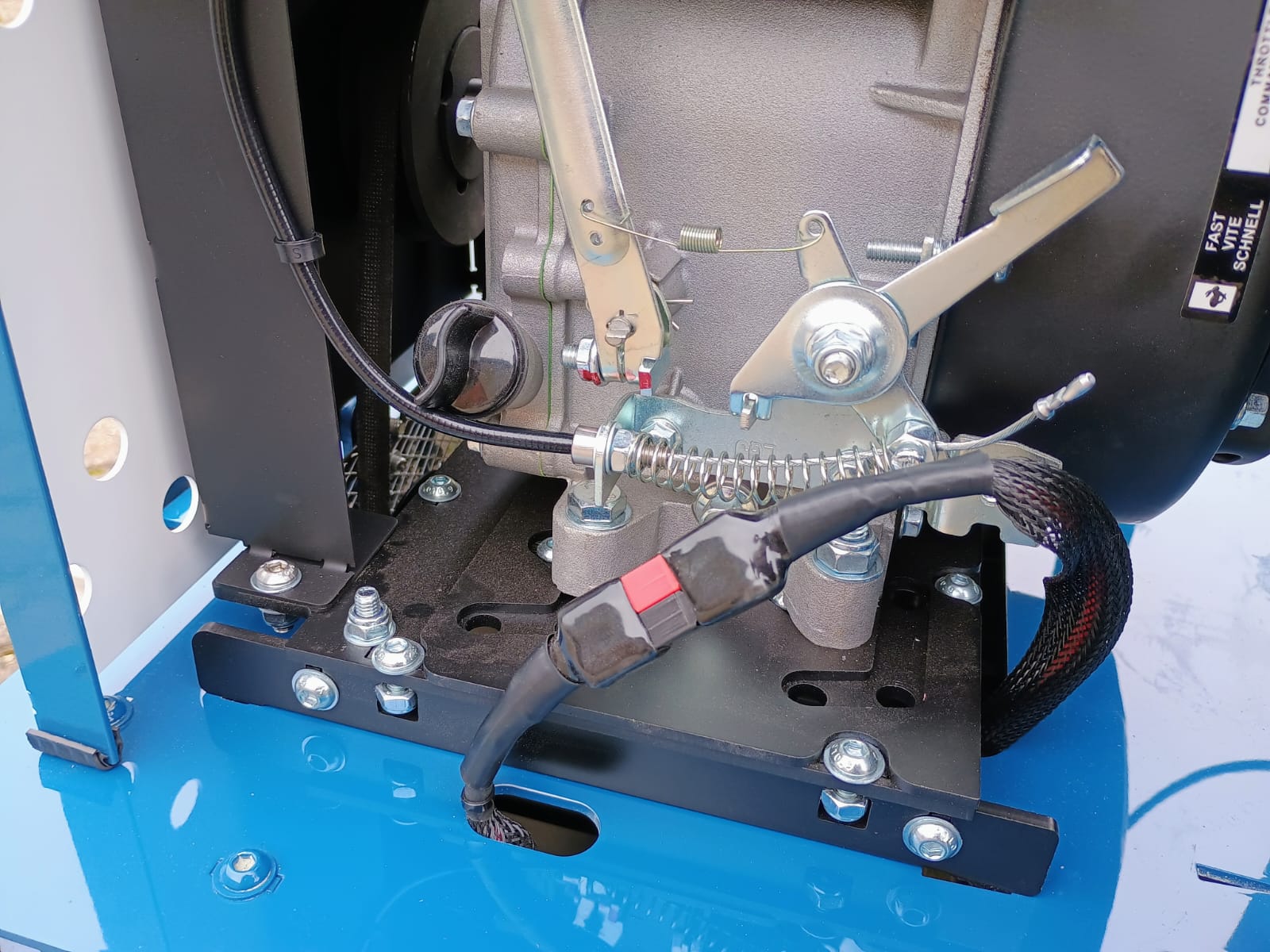

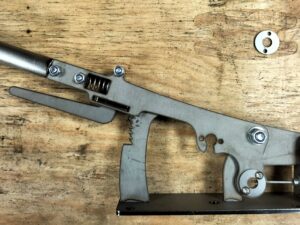

Petrol engine | 2x 800 watt electric motors, one to drive the wheels, one used as a dynamo | Hand operated braking | 5″ diameter wheels | 5-8mph

Scamp also has the option to be fully electric by removing the engine and generator unit. The optional battery box can be dropped in. Conversion takes less than 5 minutes. Battery operation is ideal for indoor or quiet miniature railway use.

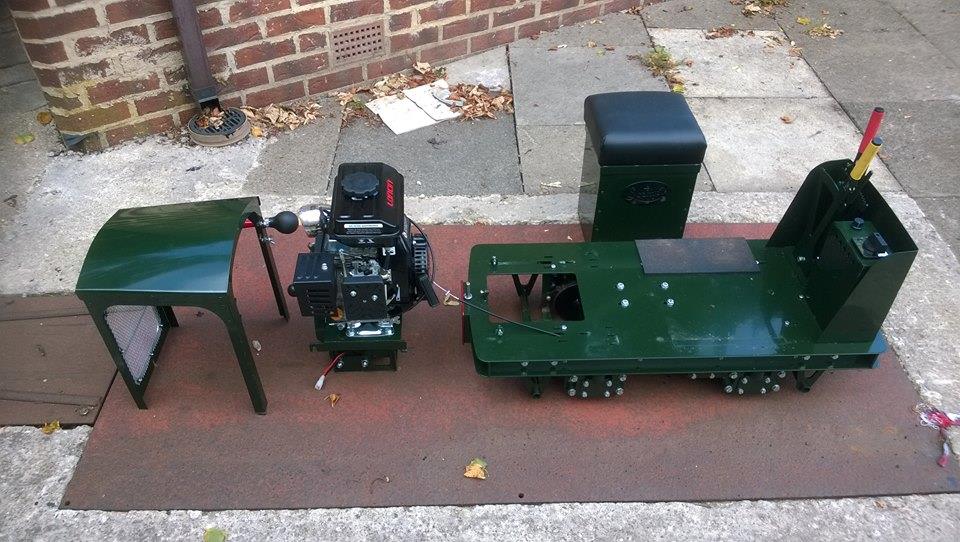

For easy transport the loco breaks down into sub assemblies.

Also available in 7½” and 10¼” gauge, please contact us for pricing details.



Scamp –  from £3.045.00

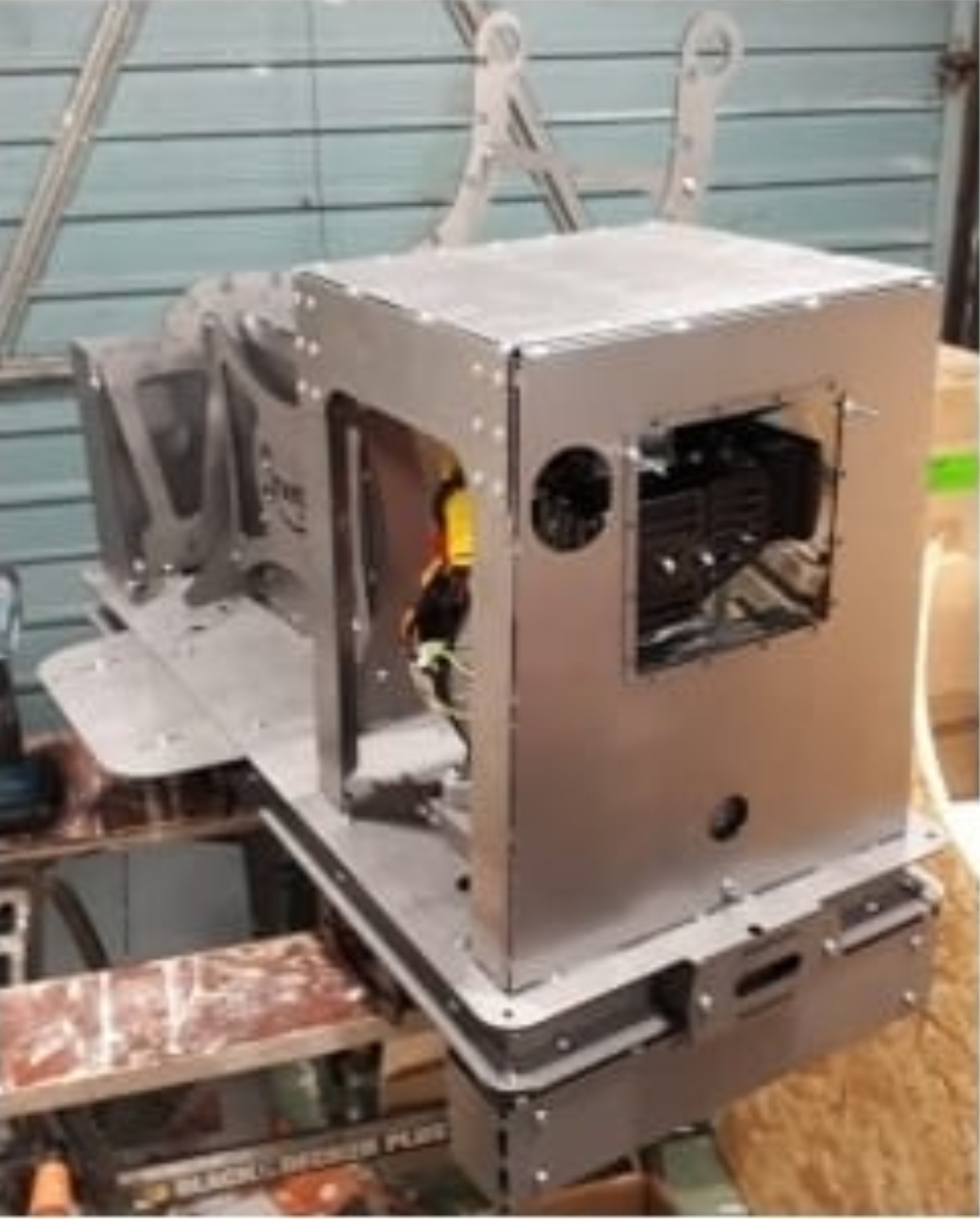

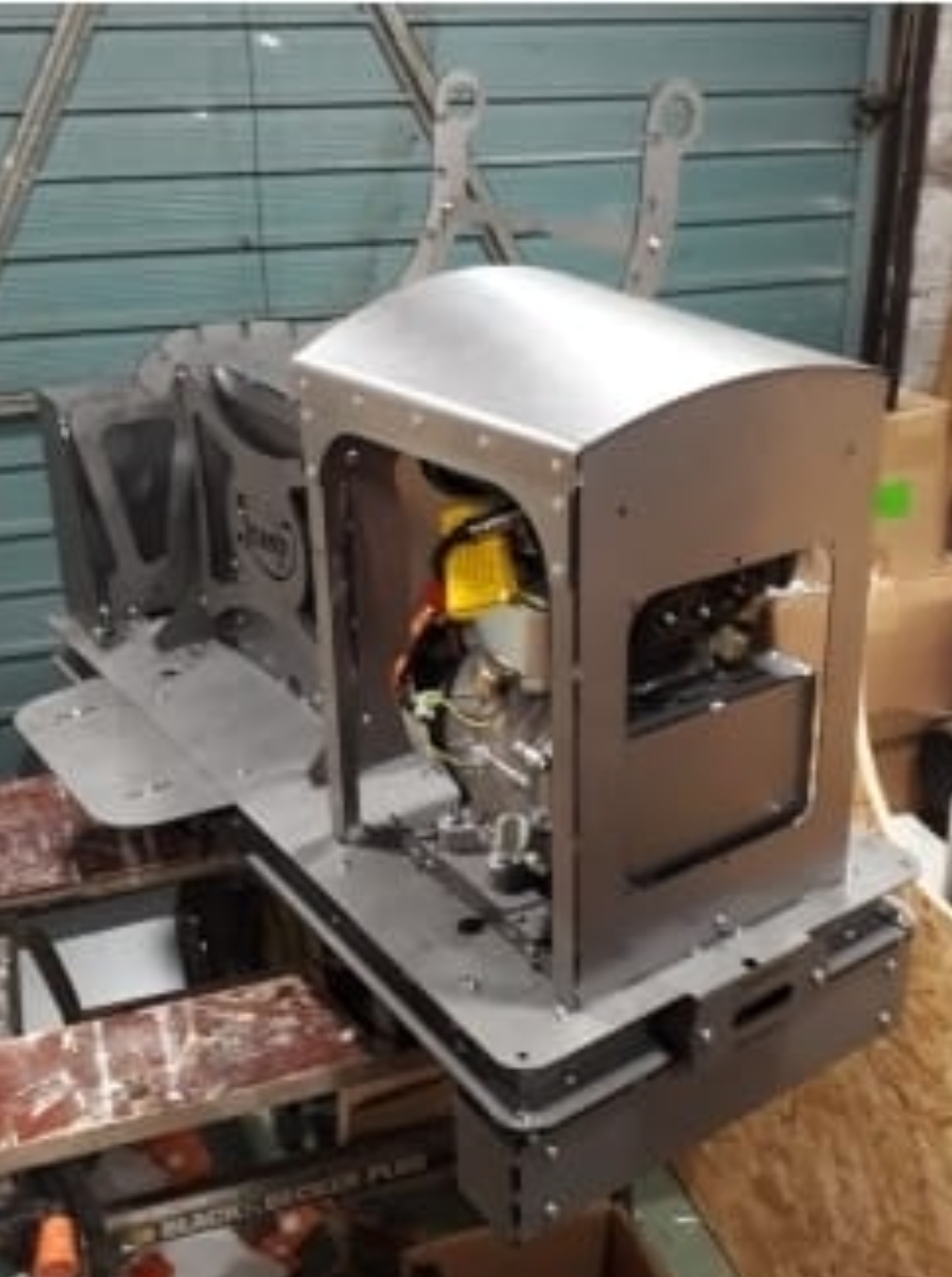

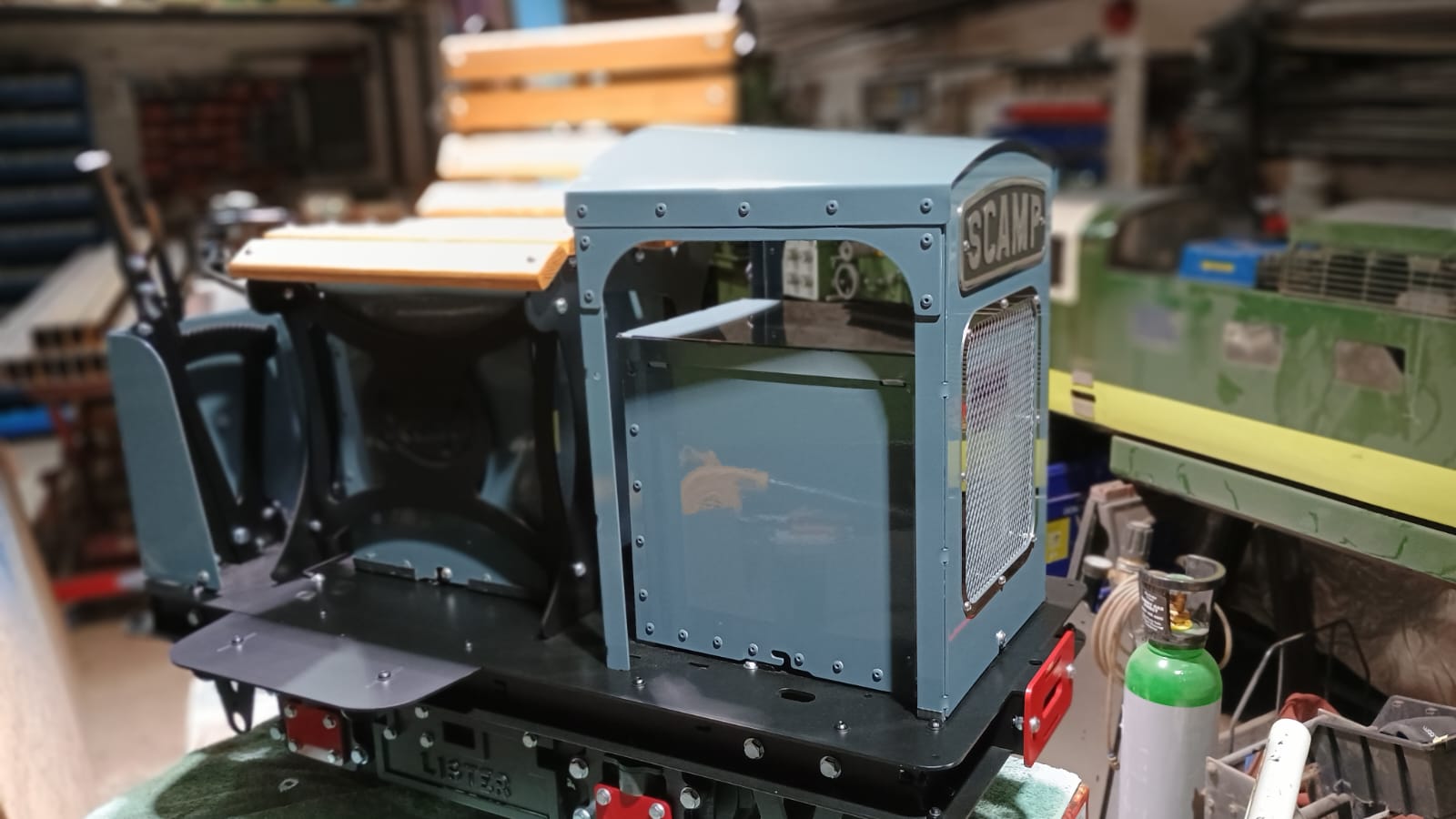

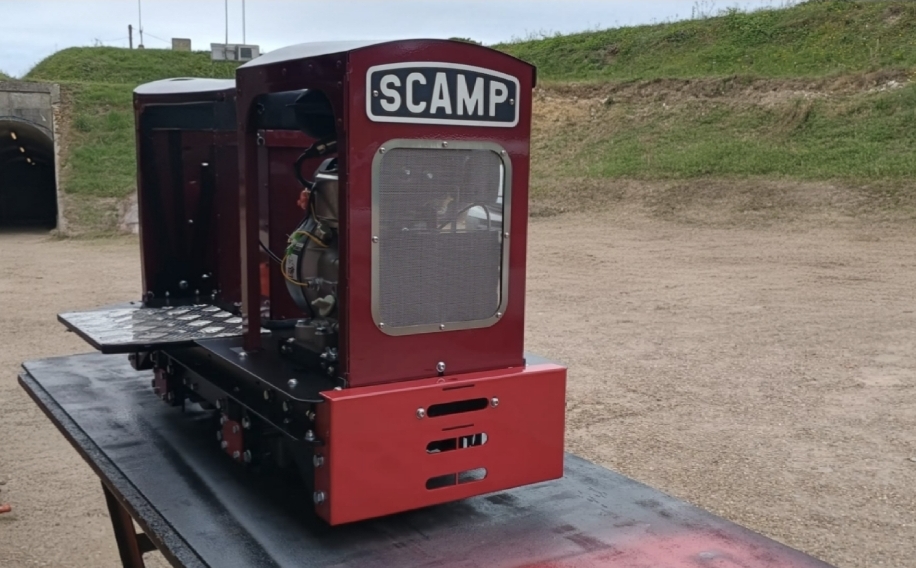

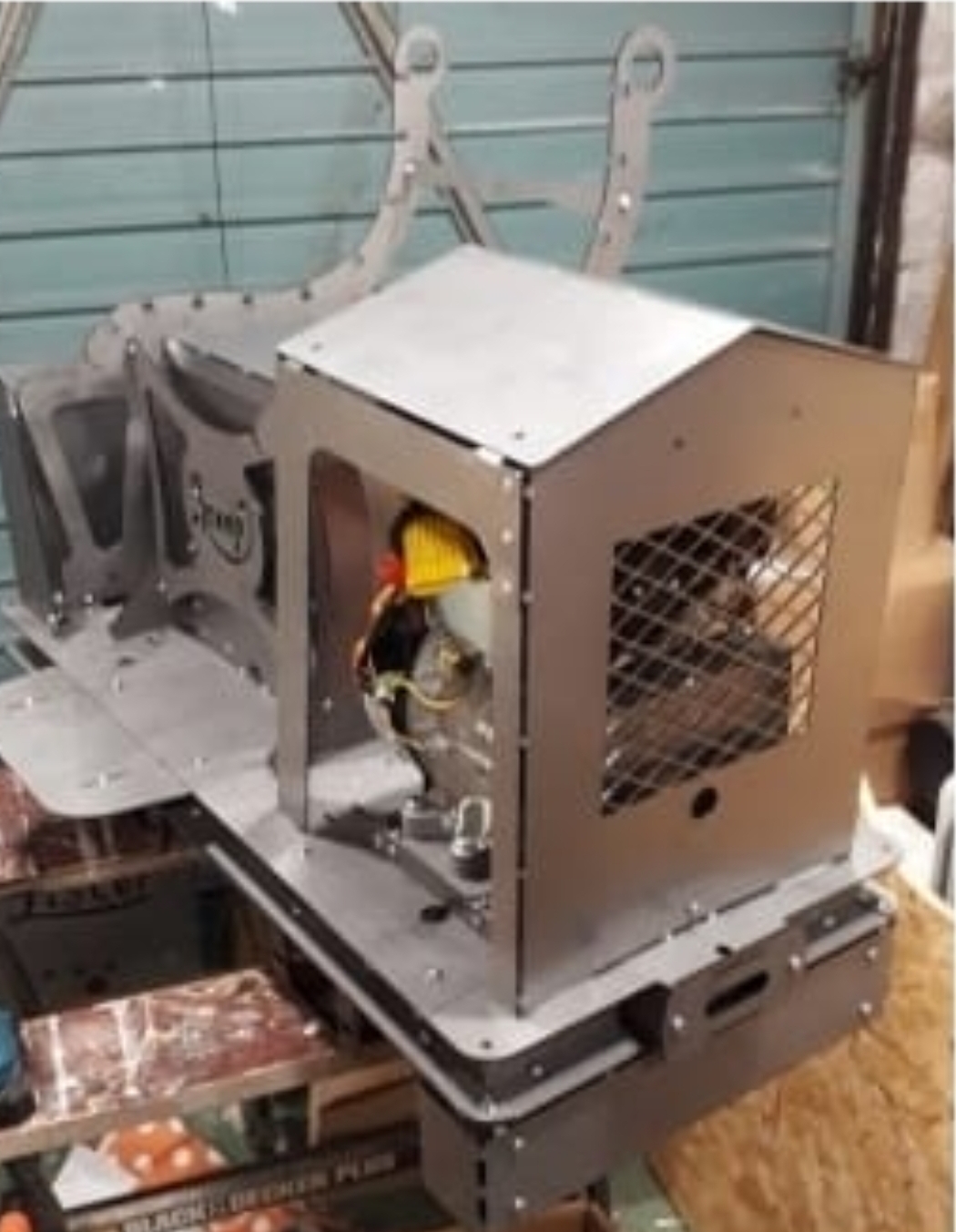

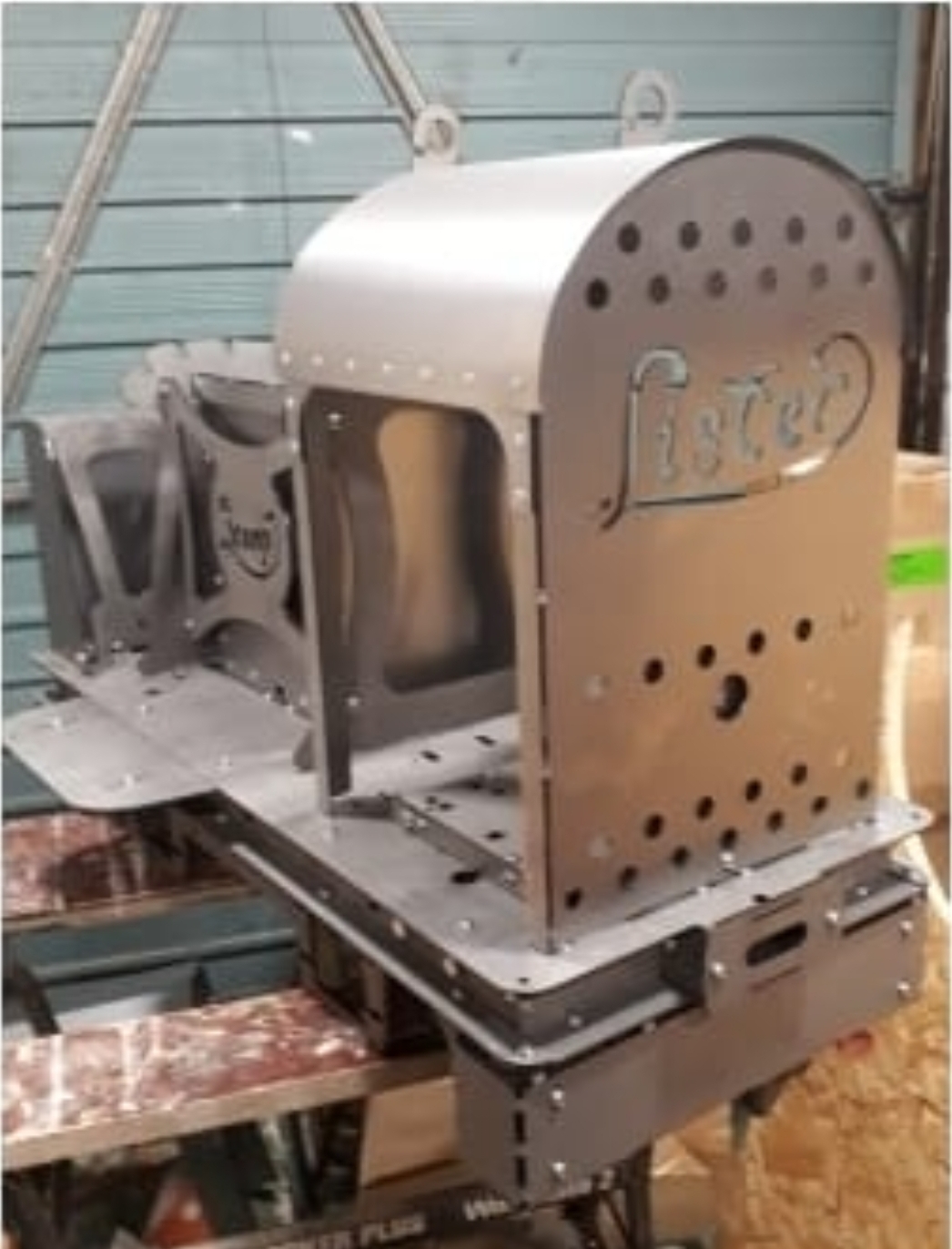

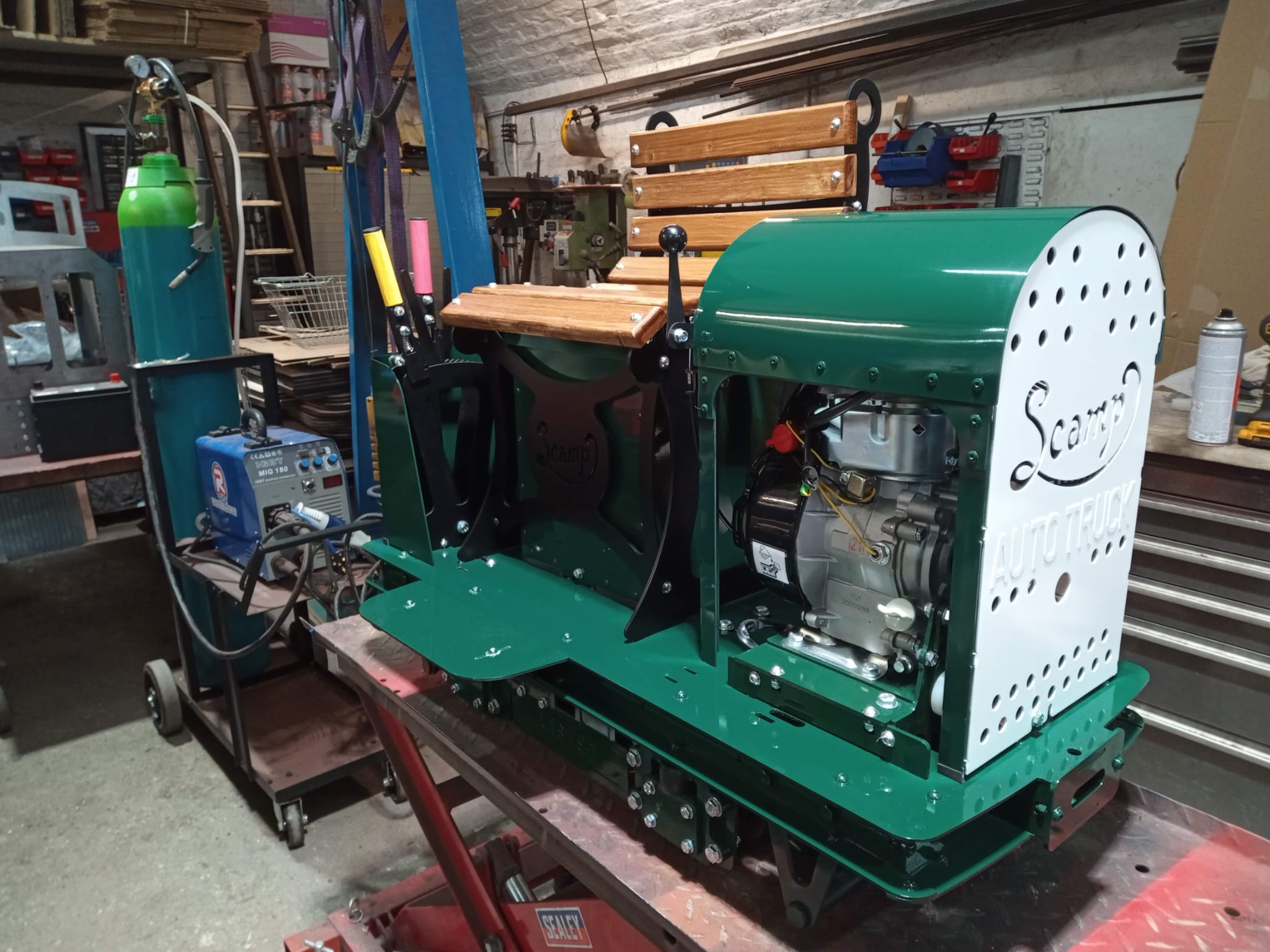

Bonnet options: Lister | Scamp | Ruston | O&K

Optional extras:

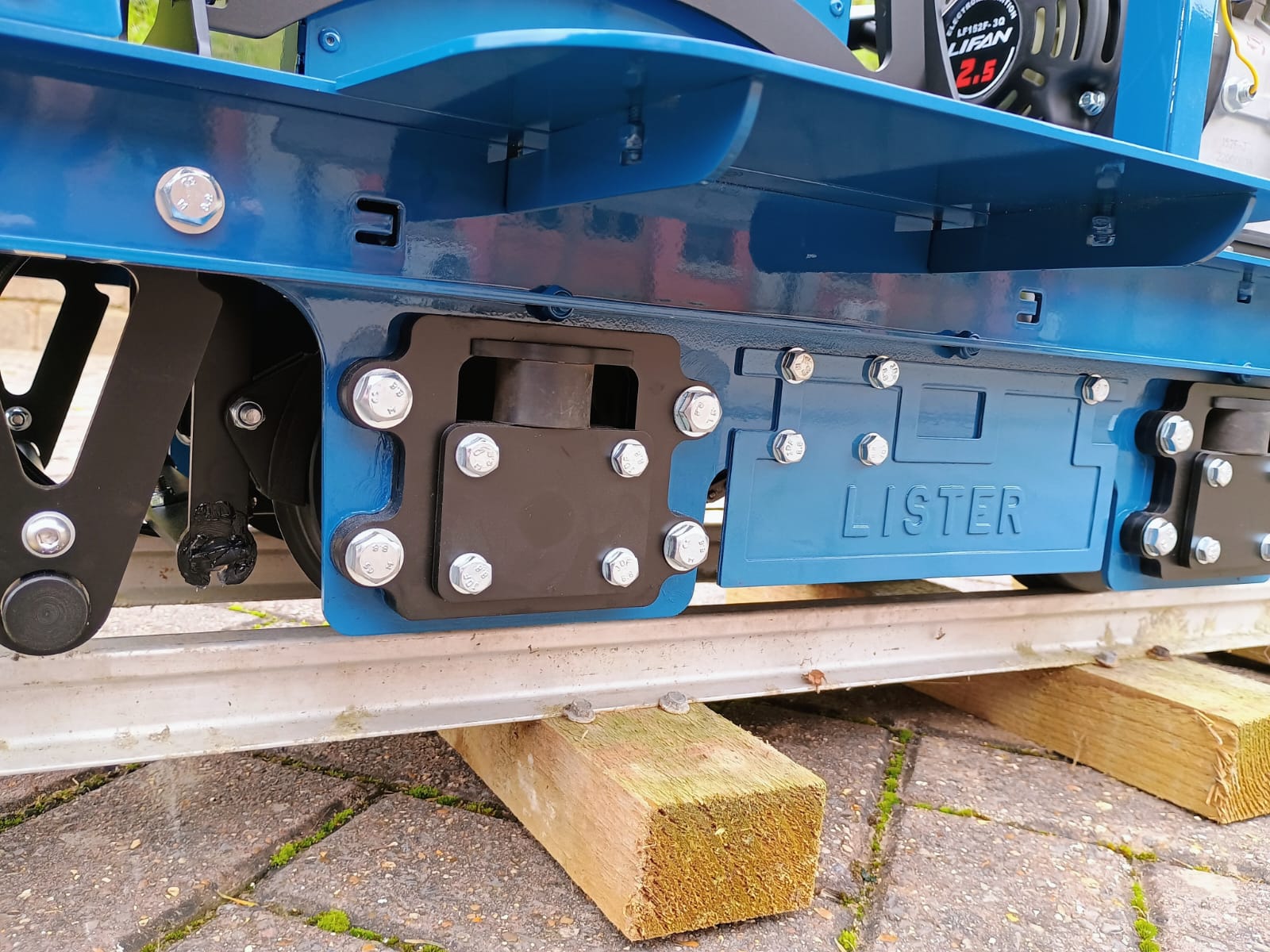

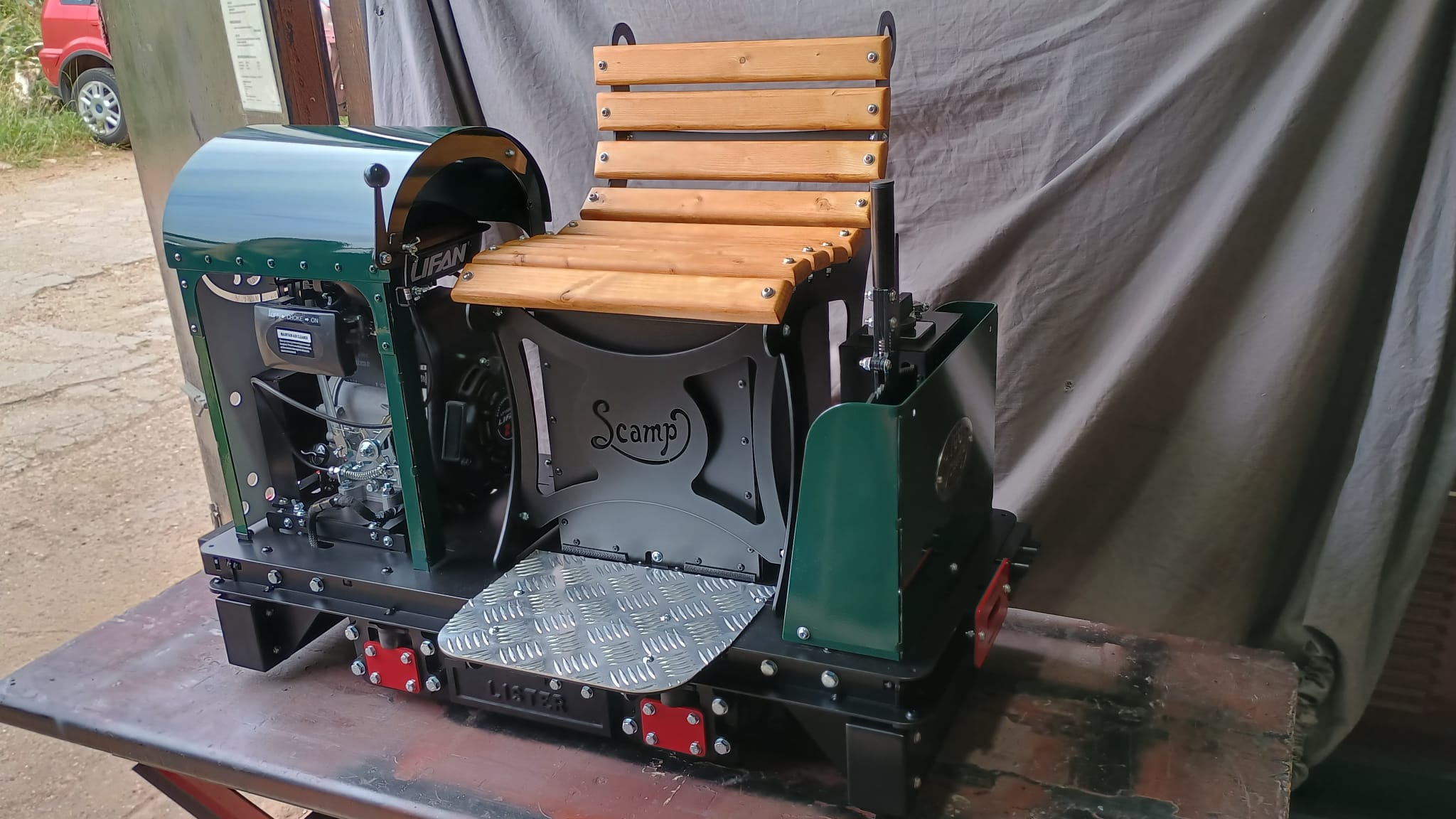

Custom Lister bonnet (name on grille) £20 | Slatted seat £116.00 | Lister end weights £131.25 | Lister standard side weights £40.00 | Lister chunky side weights £57.00 | Ruston buffer beams £125.00 | Battery box including batteries £315.00 | Vacuum brakes £230.00



Supplied: Ready to run locomotive, built to your specifications.

Rear cab sheet and floor guards come as standard.



Contact us to make an order, please specify your bonnet type, colour, gauge and any optional extras.

Estimated lead time: 10-12 weeks. A booking in date will be given at point of order.

For a personal touch of assistance during your build or breaking in your new stock, join this Facebook group. Filled with current and experienced builders of Colin Edmondson products.

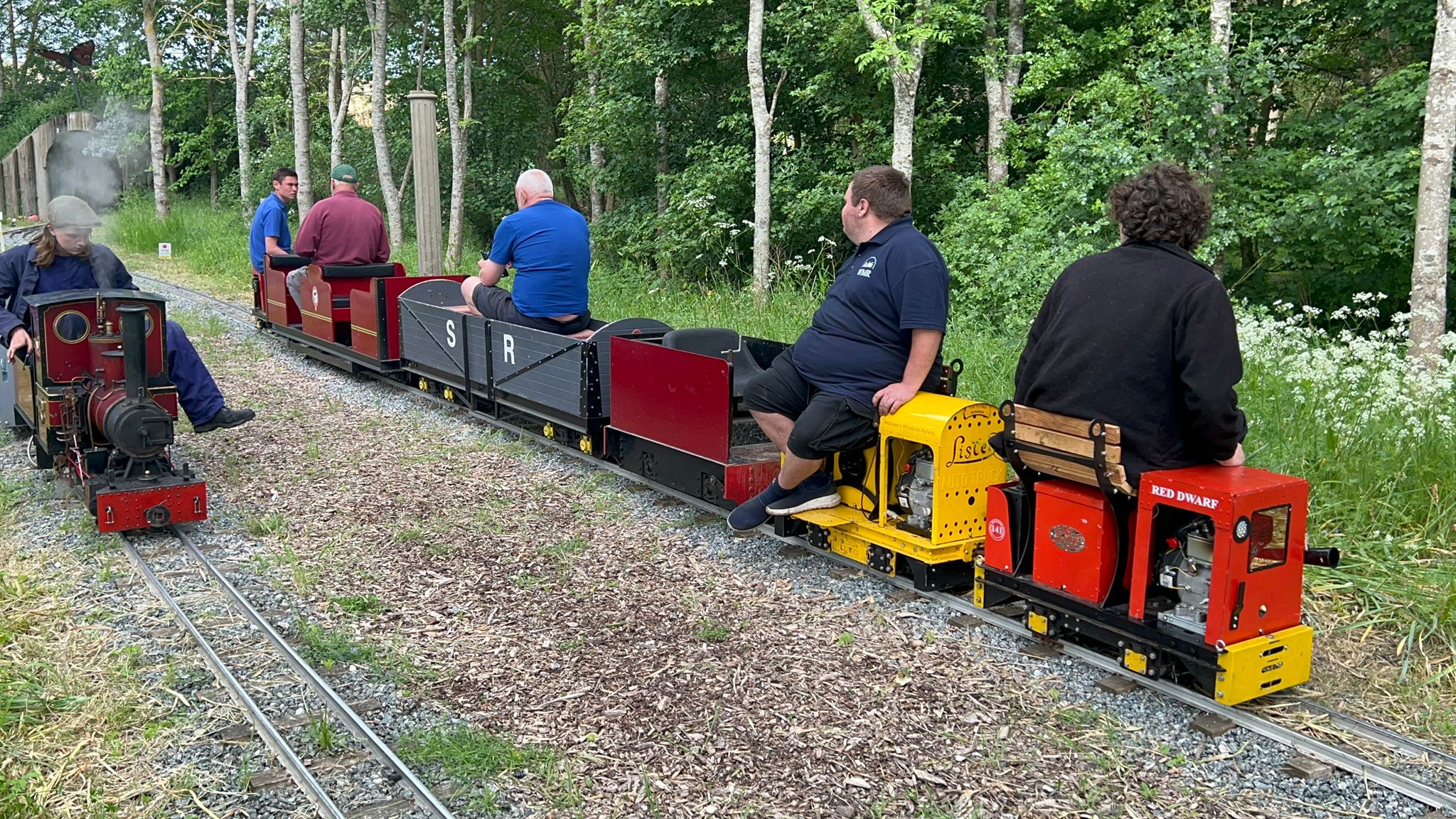

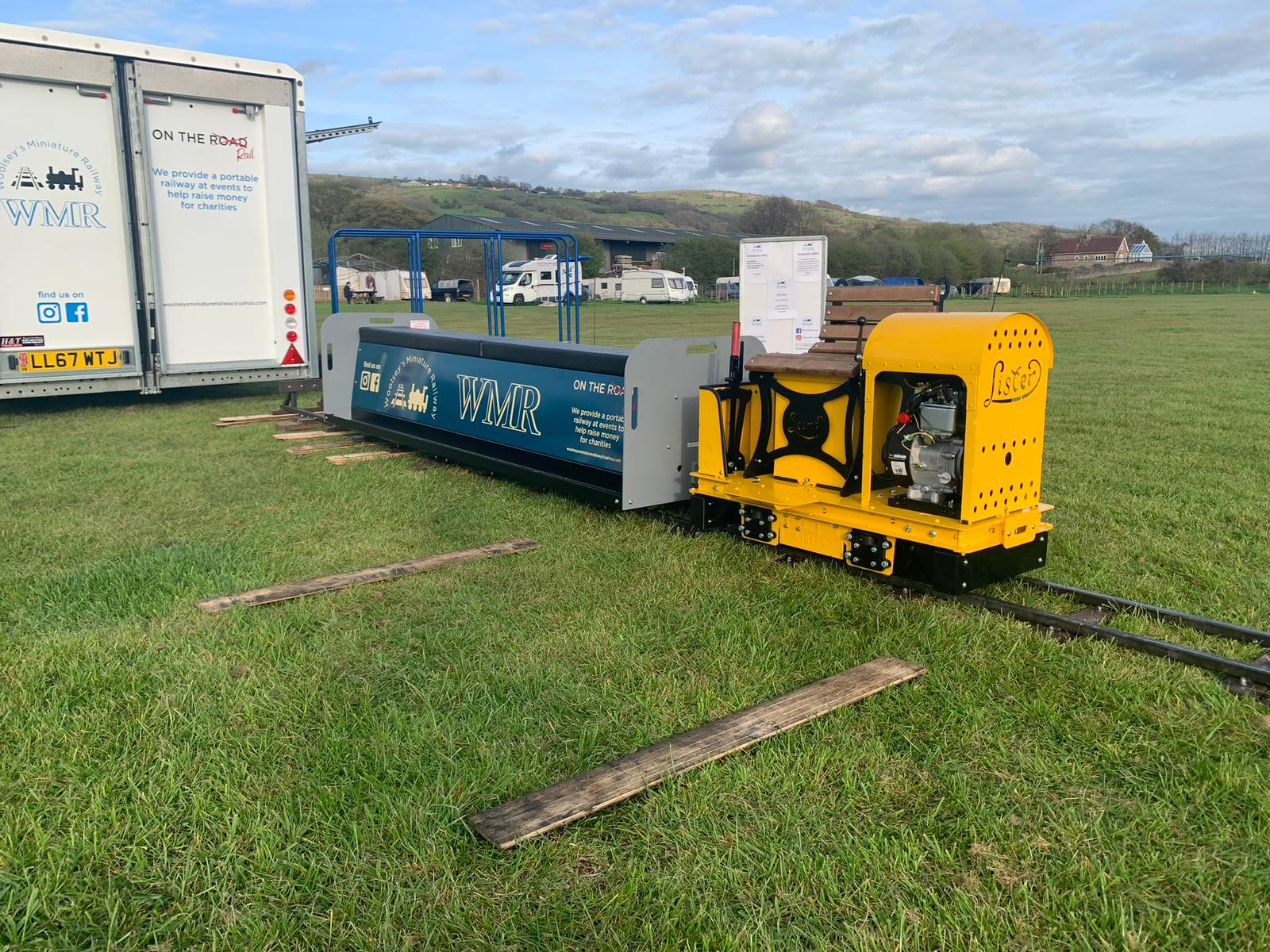

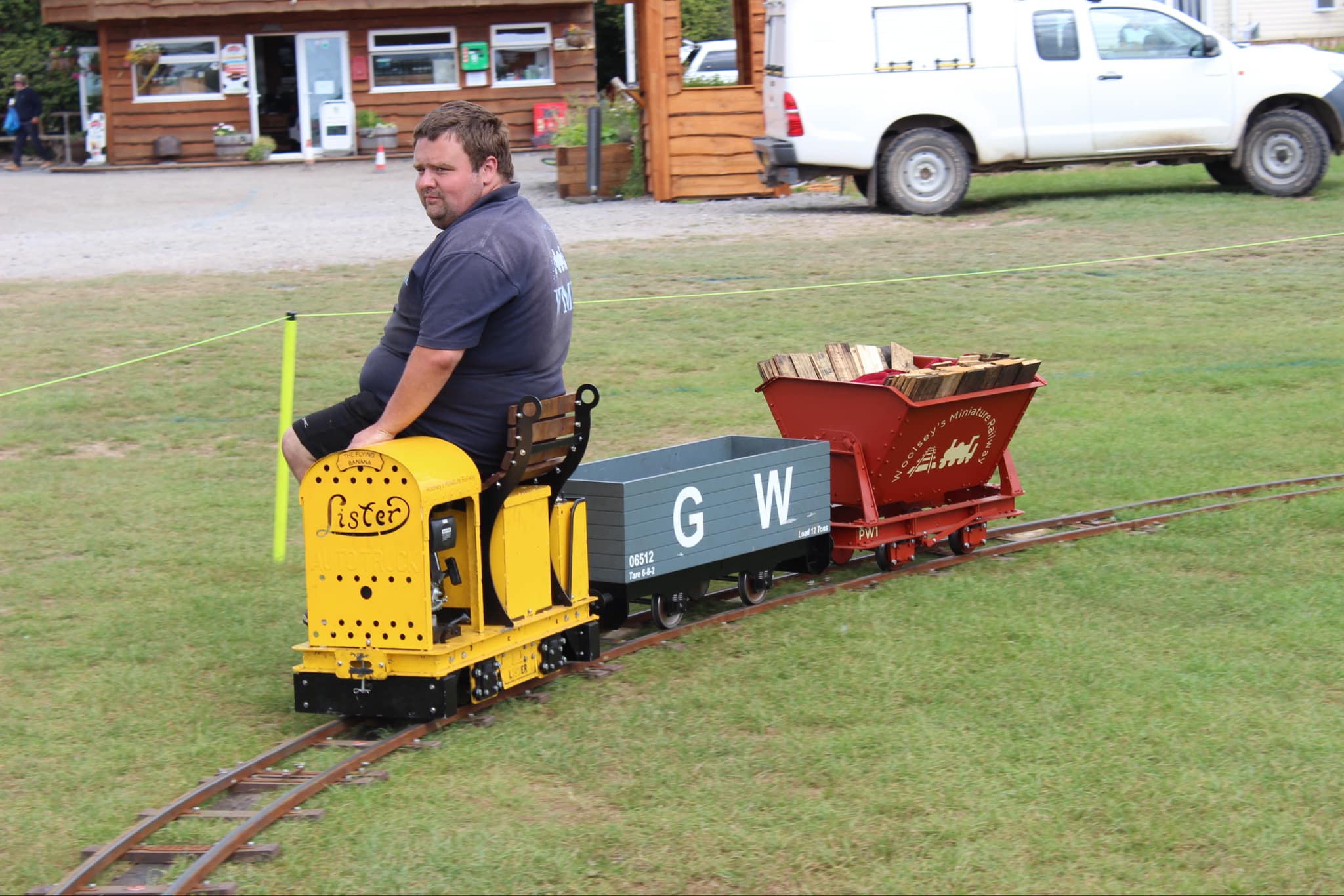

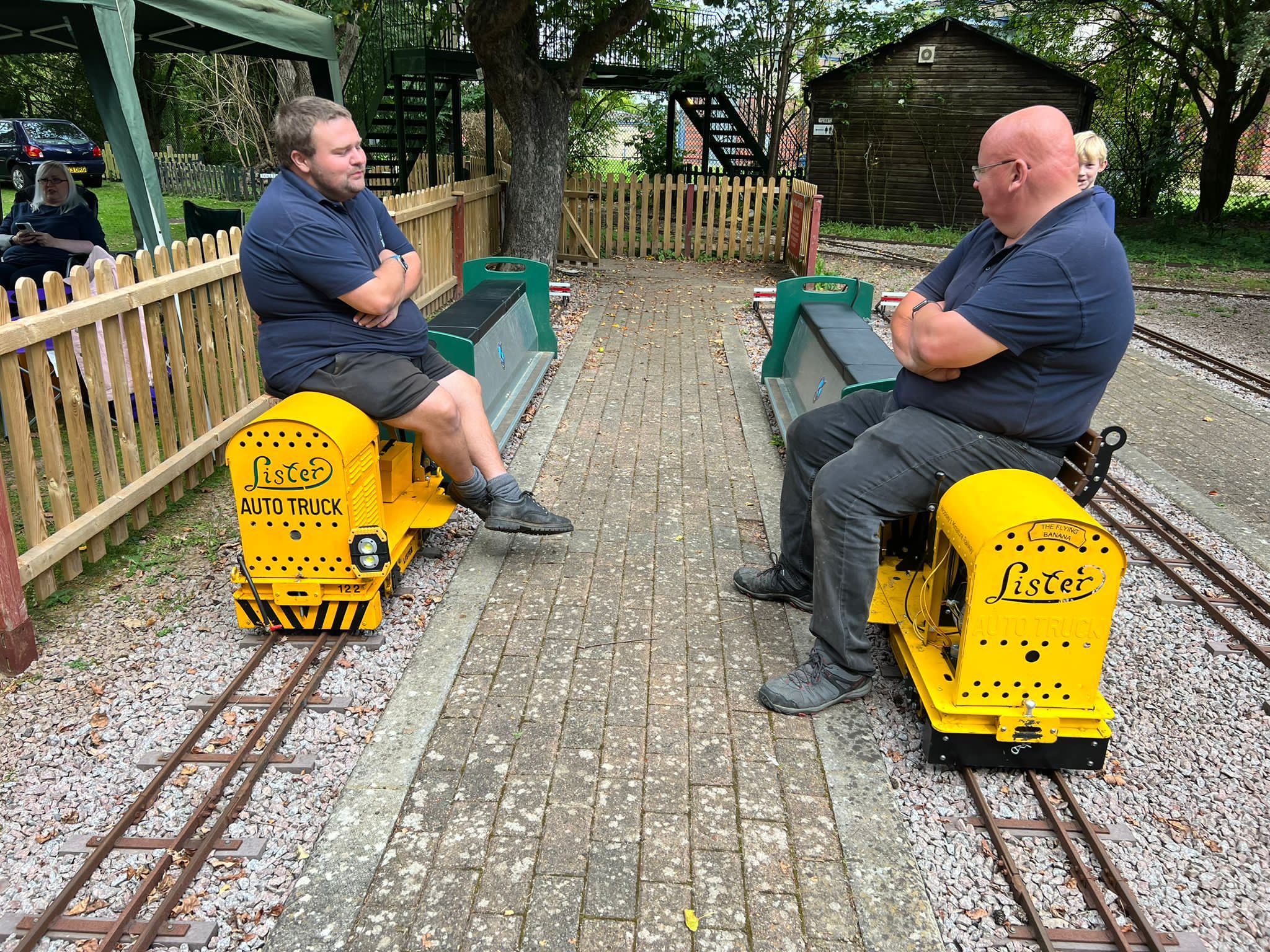

Scamps in action here
