With the workshop now back open and in full swing, we’ve decided to launch multiple new products at once. Most of which are designs by the very well-known and respected Mr Colin Edmondson.

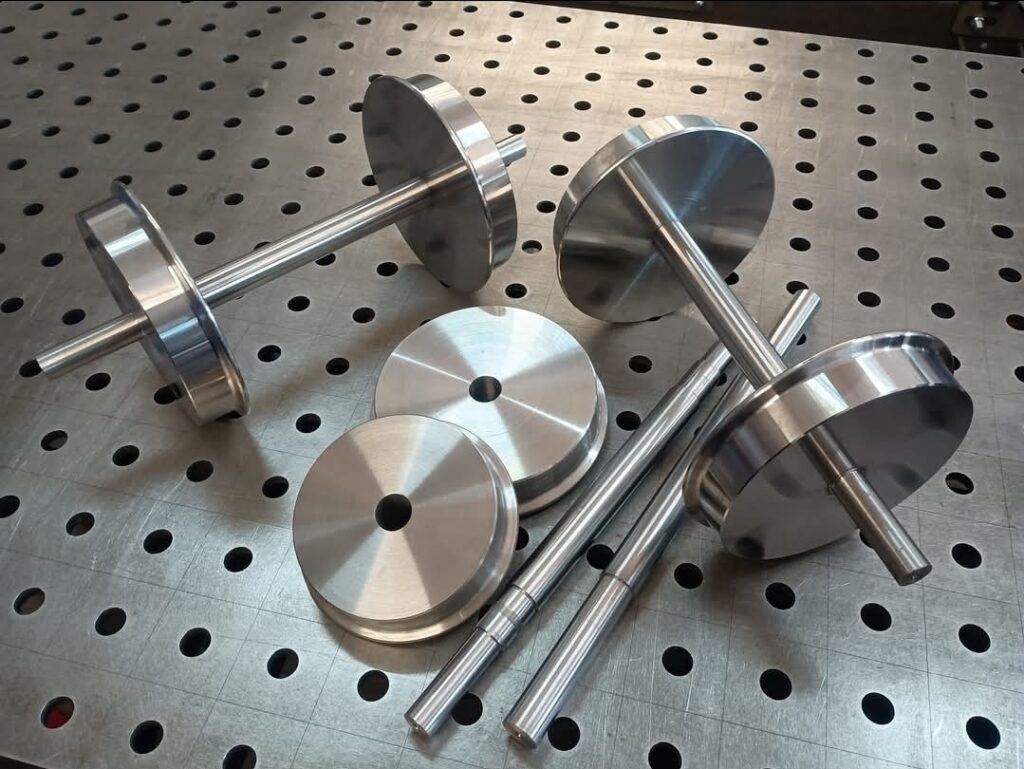

Wheels, Axles and Wheelsets
Currently offering 2 different axles and 2 different wheels. All to the 7¼” Society narrow gauge profile. This range will continuously grow.
Axle 001 – Axle Length 358mm | 7/8 Stock | Press fit on wheels with 20mm bore £21.58
Axle 002 – Axle Length 340mm | 7/8 Stock | Press fit on wheels with 20mm bore £21.58
5” Dia Wheel – 5″ over flange | 4.5″ on tread | 20mm bore | 28.5mm thick | EN8 £19.34
6” Dia Wheel – 6″ over flange | 5.5″ on tread | 20mm bore | 28.5mm thick | EN8 £25.30
5” Dia Wheelset – 5” wheels as above with either axle £72.60 each (2 wheels 1 axle)
6” Dia Wheelset – 6” wheels as above with either axle £84.17 each (2 wheels 1 axle)
We also take on custom orders! Email with your requirements and receive a quote.
To make an order or enquire on custom wheels, please email Admin@miniature-trains.co.uk.
Orders confirmed by Friday 15th May will be dispatched week beginning 8th June. (A lead time we will be decreasing beyond this point)
Note: For anyone who emailed the previous address, this has suffered a fault – can all enquiries be resent to the email address above please. Sorry for any inconvenience caused.
All listings can be found Wheels and Axles Archives – CMD Engineering

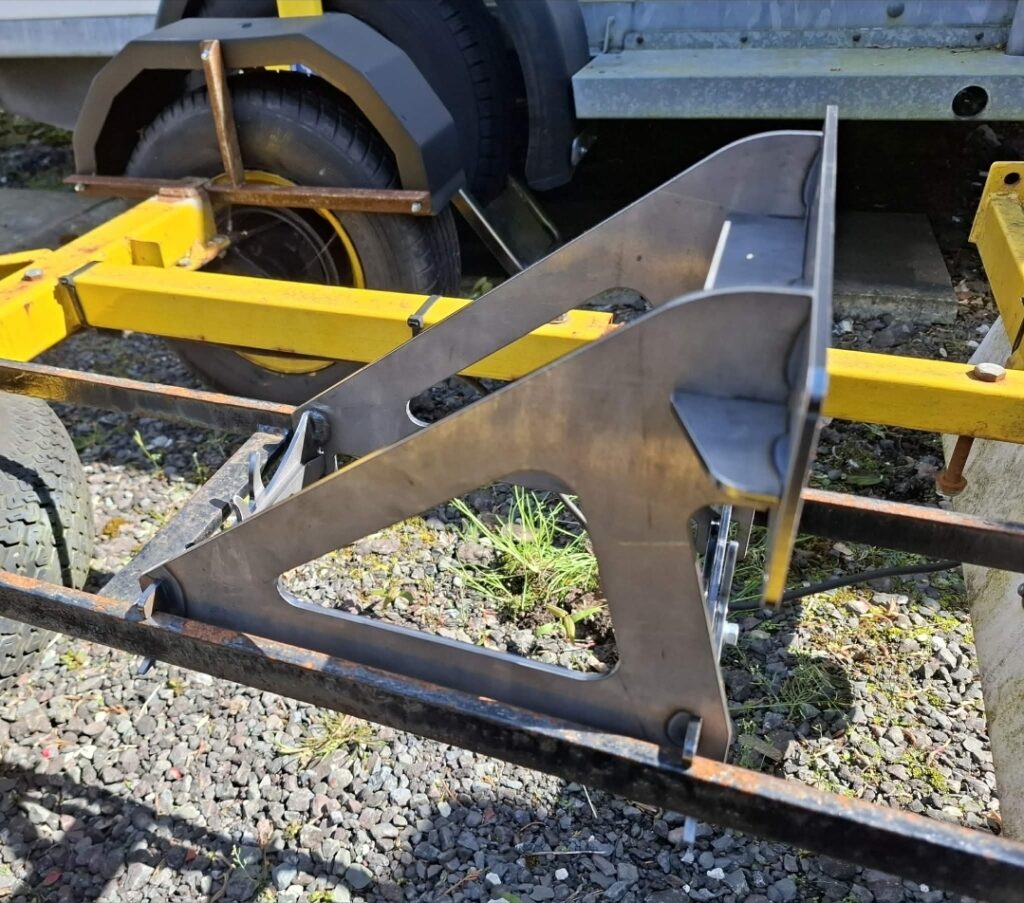

Colin Edmondson Buffer Stop
This narrow-gauge buffer stop is designed to simply drop on top of the rails wherever it is needed and is locked securely in place by four sliding wedges. The material is all 4mm thick mild steel. You can add a timber buffer plank if you so wish.
It’s suitable for any rail section from 16mm tall to 27mm tall, including flat bar rails.
7¼ Buffer Stop (Edmondson) – CMD Engineering £72.00

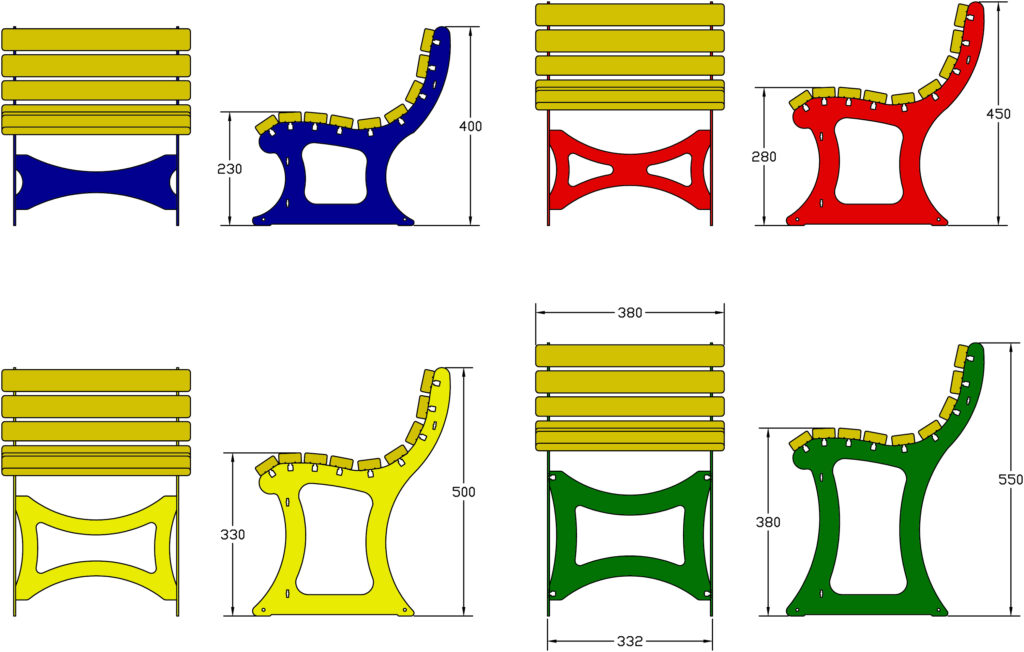

Colin Edmondson Universal Slatted Seats
Available in four different height sizes for universal installation. Supplied in kit form, steelwork only (you will need to source your slats)
Colin Edmondson Sit Astride
Available in 5ft, 6ft, 7ft, 8ft and 9ft body lengths. Choose your bogie configuration.
Further details found Edmondson Sit-Astride Carriage 7¼” – CMD Engineering

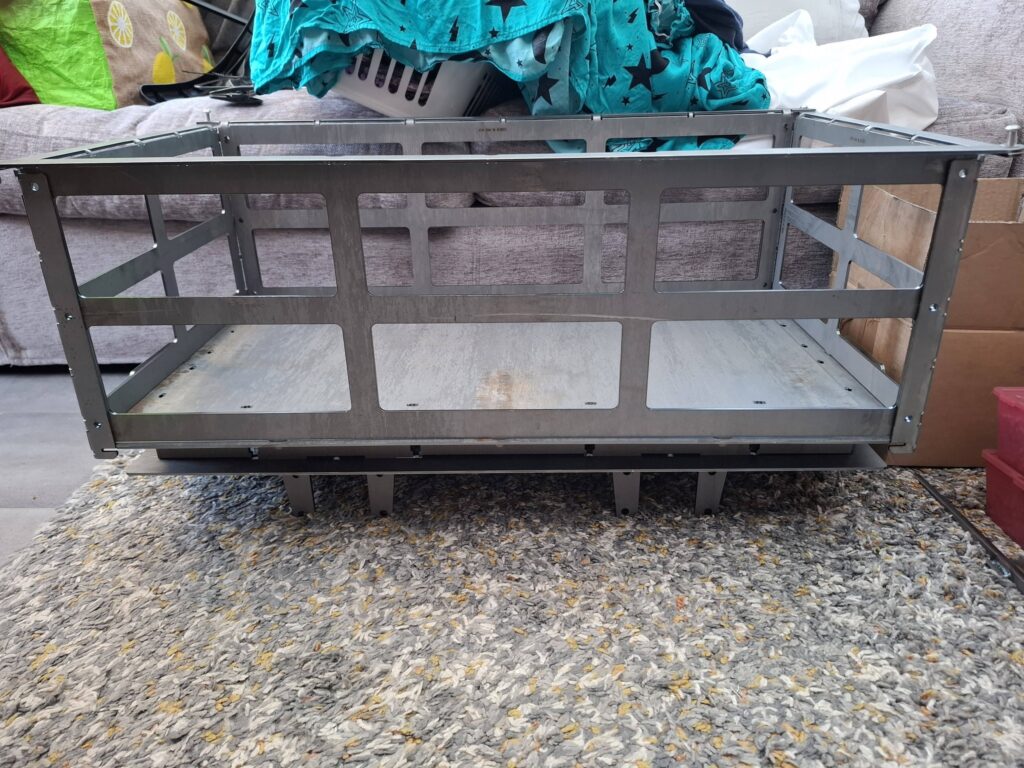

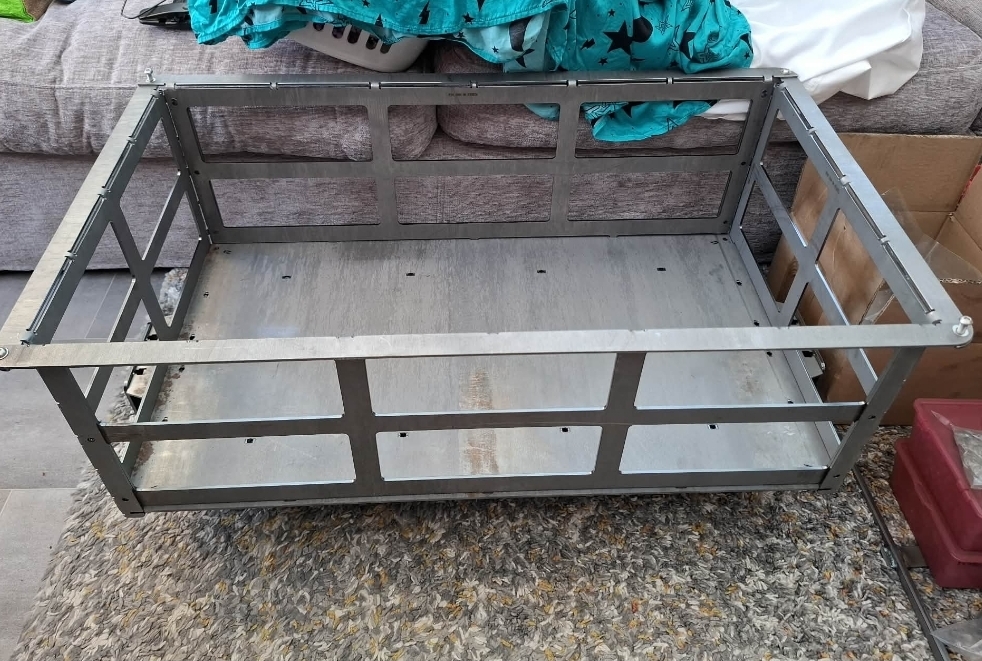

Colin Edmondson Flat wagon and slate wagon
An entirely new product designed by Colin Edmondson, available in kit form or ready to run. The flat wagon can be used as you see fit. The slate sides are the first of many additions to this range. Flat wagon kit comes with wheelsets and fixings.
Photos show prototype versions of the product and will be updated shortly.
Flat Wagon R2R | Slate Wagon Sides R2R | Flat Wagon Kit | Slate Wagon Sides Kit

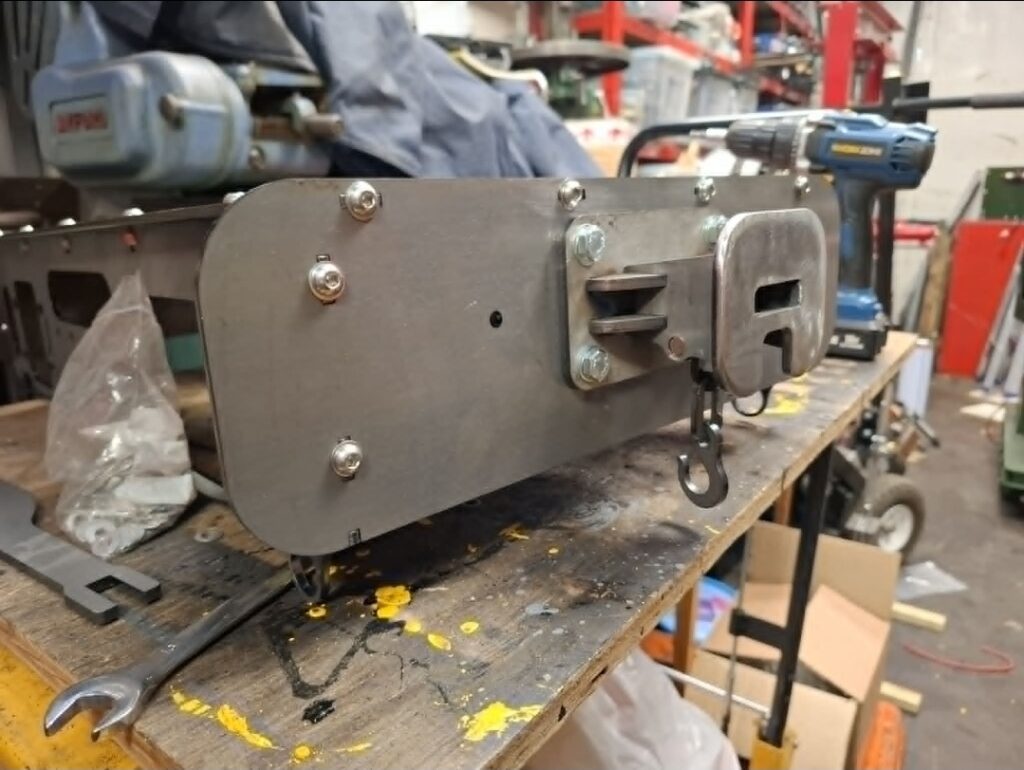

Colin Edmondson Penrhyn Buffer
Colin’s aim was to produce a simple welded buffer which would look the part on a large narrow gauge loco, but would be compatible with the commonly used link and pin couplings.
Penrhyn Buffer – CMD Engineering

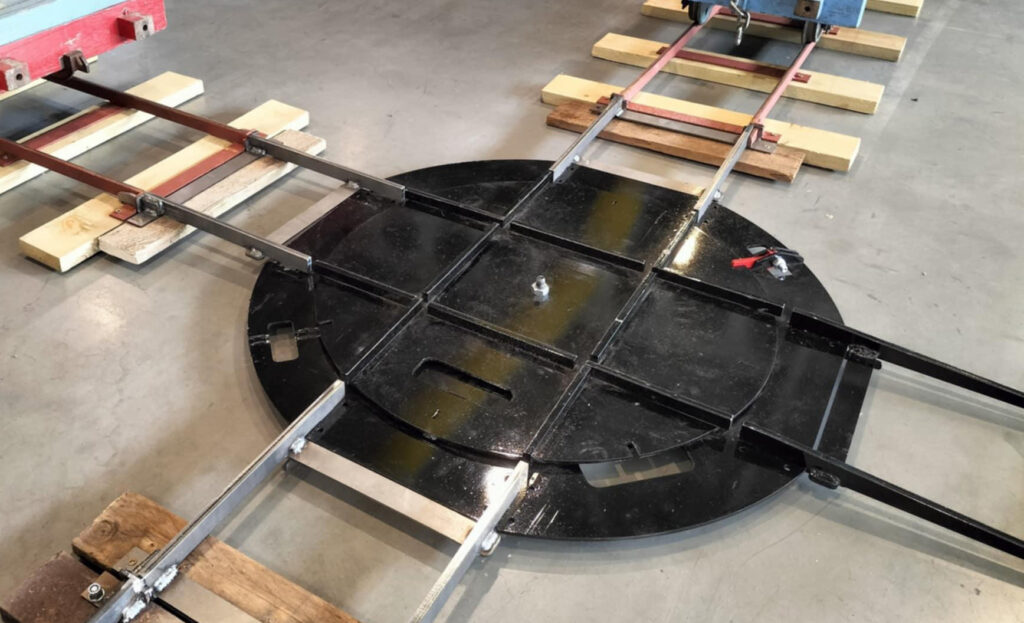

Colin Edmondson Portable Turntables
Three additional turntables added to the website.
5″ | 7¼” Heavy Duty | 4Way Turntable
